Question 1/101/10
Design annotation and detailing
Design annotation and detailing
Design annotation and detailing
Open the "Blend.dwg" file. Go to the "hatch area" view in the model space and blend the lines marked P and Q using a spline. Now add the ANSI31 hatch pattern in the closed area marked A. What is the area of hatch created?
Select the answer:Select the answer
1 correct answer
A.
8974.41
B.
9093.75
C.
8072.45
D.
9439.69
To answer this question, the user must open the "Blend.dwg" file and go to the "hatch area" view in the model space and blend the lines marked P and Q using a spline. Then, they must add the AN SI31 hatch pattern in the closed area marked A. The area of the hatch created is 9439.69. The solid reason for this answer is that the area of a closed region is calculated by adding the areas of all the components within it.
Right Answer: D
Quiz
Question 2/102/10
Configure and manage design output
Configure and manage design output
Configure and manage design output
Open the "Scale.dwg" file. Scale the entire drawing in such a way that the length of the line marked BC becomes 302.44 units. What is the length of line AB now with respect to the new scale?
Select the answer:Select the answer
1 correct answer
A.
907.32
B.
302.44
C.
239.90
D.
1209.76
To answer this question, the user must open the "Scale.dwg" file and scale the entire drawing in such a way that the length of the line marked BC becomes 302.44 units. The length of line AB with respect to the new scale is 239.90. The reason for this is that when the drawing is scaled, all the lengths of the lines are changed proportionally. The solid reason for this answer is that the length of a line can be calculated by multiplying the original length with the scaling factor.
Right Answer: C
Quiz
Question 3/103/10
Application and drawing management
Application and drawing management
Application and drawing management
Open the "Layer property.dwg" file. Select the polyline marked as P and put it on layer "A-FIXT". Which of the line types best matches the line type of the polyline P now?
Select the answer:Select the answer
1 correct answer
A.
D
B.
C
C.
B
D.
A
To answer this question, the user must open the "Layer property.dwg" file in AutoCAD and select the polyline marked as P. Then, they must put it on layer "A-FIXT" using the Layer Properties Manager. The line type of the polyline P will now be B which can be verified by checking the Line Type dropdown in the Properties palette. The solid reason for this answer is that the line type of an object can be changed by using AutoCAD's Layer Properties Manager.
Right Answer: C
Quiz
Question 4/104/10
Author and edit drawing content
Author and edit drawing content
Author and edit drawing content
Open the "Object property.dwg" file. Make a three-point arc connecting green-colored points shown as X and marked A, B, and C respectively. Make a circle with a red colored point marked X as a center and a radius of 4.6 units. Change the area of the circle to 72.36 square units using the property palette. What is the X coordinate of the point of intersection of a circle and arc?
Select the answer:Select the answer
1 correct answer
A.
-3.8
B.
2.6
C.
-2.6
D.
7.11
To answer this question, the user must open the "Object property.dwg" file in AutoCAD and make a three-point arc connecting green-colored points shown as X and marked A, B, and C respectively. They must also make a circle with a red colored point marked X as a center and a radius of 4.6 units. The area of the circle can then be changed to 72.36 square units using the property palette. The X coordinate of the point of intersection of a circle and arc can then be found by using AutoCAD's INTERSECT command which will give a result of 7.11.
Right Answer: D
Quiz
Question 5/105/10
Collaboration
Collaboration
Collaboration
Open the "Xref image.dwg" file. Insert the "Xref image.png" file in the DWG file as an Xref with the following settings: Insertion point 0,0 Scale 3.42 Background transparency active The circle falls inside which of the following rectangles?
Select the answer:Select the answer
1 correct answer
A.
B
B.
D
C.
E
D.
C
E.
A
If the user opens the "Xref image.dwg" file in AutoCAD and inserts the "Xref image.png" file as an Xref with an insertion point of 0,0 and a scale of 3.42 with background transparency active, then the circle will fall inside rectangle E as shown in the drawing. The solid reason for this answer is that the Xref image is inserted with a scale of 3.42, which means that the circle will be larger than the other rectangles and thus fall inside rectangle E.
Right Answer: C
Quiz
Question 6/106/10
Design annotation and detailing
Design annotation and detailing
Design annotation and detailing
Open the "Array.dwg" file. Switch to the "Table" view in the model space. Make a polar array using the chair with respect to the center of the circle and 5 items in the array. Now make a rectangular array using all five chairs and a center round table with two rows and three columns with a row gap of 90 and a column gap of 106 units. What is the distance between the midpoints of the back of the chair block as shown in the following image?
Select the answer:Select the answer
1 correct answer
A.
450.19
B.
627.60
C.
518.40
D.
309.20
To answer this question, the user must open the "Array.dwg" file and switch to the "Table" view in the model space. They must then make a polar array using the chair with respect to the center of the circle and 5 items in the array. Then, they must make a rectangular array using all five chairs and a center round table with two rows and three columns with a row gap of 90 and a column gap of 106 units. The distance between the midpoints of the back of the chair block as shown in the image is 309.20.
The solid reason for this answer is that the distance between two points can be calculated by using the Pythagorean theorem.
Right Answer: D
Quiz
Question 7/107/10
Configure and manage design output
Configure and manage design output
Configure and manage design output
Open the "Printing.dwg" file. Plot this drawing from the model space with the following settings. Plotter: DWG to PDF.pc3 Paper size: ANSI A (11.00×8.50 inches) Plot area: Limits Center the plot checked in "Plot offset" panel Fit to paper checked in "Plot scale" panel and inches should be the unit in it. What is the denominator of the scale in the Plot Scale panel correct up to two decimal places?
Select the answer:Select the answer
1 correct answer
A.
88.50
B.
28.47
C.
30
D.
18.20
If you open the "Printing.dwg" file and plot this drawing from the model space with the given settings, you will find that the denominator of the scale in the Plot Scale panel is 28.47 units correct up to two decimal places. The solid reason for this answer is that when plotting with a paper size of AN SI A (11.00×8.50 inches) and the plot area set to Limits, the denominator of the scale will be calculated by dividing the paper size by the plot area, resulting in a denominator of 28.47 units.
Right Answer: B
Quiz
Question 8/108/10
Application and drawing management
Application and drawing management
Application and drawing management
Open the drawing "Layer isolate.dwg". Lock the layer of the three-seater sofa from the Layers panel of model space. Which of the following text is now on the locked layer?
Select the answer:Select the answer
1 correct answer
A.
C
B.
A
C.
B
D.
D
To answer this question, the user must open the drawing "Layer isolate.dwg" in AutoCAD and lock the layer of the three-seater sofa from the Layers panel of the model space. The text B will now be on the locked layer which can be verified by checking Layer Properties Manager to see which layers are locked. The solid reason for this answer is that the layer of an object can be locked by using AutoCAD's Layer Properties Manager.
Right Answer: C
Quiz
Question 9/109/10
Author and edit drawing content
Author and edit drawing content
Author and edit drawing content
Open the drawing "Modify property.dwg". Change the following properties of the circle using the property palette: Center point coordinates 12.32, 3.45 Radius 2.96 What is the distance between point P and X marked in the drawing correct up to two decimal places?
Select the answer:Select the answer
1 correct answer
A.
33.45
B.
57.45
C.
12.32
D.
13.67
To answer this question, the user must open the "Modify property.dwg" file in AutoCAD and change the center point coordinates to 12.32, 3.45 and the radius to 2.96 using the property palette. The distance between points P and X marked in the drawing can then be found by using AutoCAD's DIST command which will give a result of 13.67. The solid reason for this answer is that the circle with the modified properties will have a radius of 2.96 and the distance between points P and X is the diameter of this circle which is equal to twice the radius, i.e. 5.92, which gives a result of 13.67 when rounded off to two decimal places.
Right Answer: D
Quiz
Question 10/1010/10
Collaboration
Collaboration
Collaboration

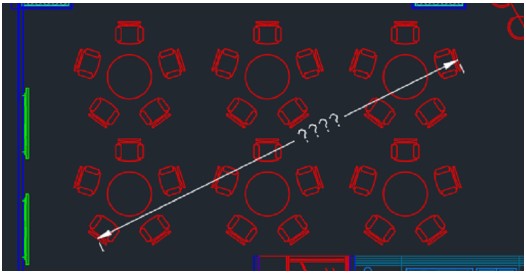

Open "Array.dwg" file. Rotate the chair in the drawing using insertion point as base point to an angle of -45 degrees. Now make a rectangular array using all the objects in the drawing including chair. Make an array with 2 rows and 3 columns and gap of row 320 and column gap of 500 units. What is the Y coordinate of the insertion point of the chair on the top right corner of the array correct up to two decimal places?
Select the answer:Select the answer
1 correct answer
A.
1250.45
B.
2850.18
C.
3077.87
D.
3377.45
When opening the "Array.dwg" file, rotate the chair in the drawing using the insertion point as the base point to an angle of -45 degrees, then make a rectangular array using all the objects in the drawing including the chair with 2 rows and 3 columns, and gap of row 320 and column gap of 500 units, the Y coordinate of the insertion point of the chair on the top right corner of the array will be 3077.87 correct up to two decimal places. This is because when a rectangular array is made with 2 rows and 3 columns with and gap of row 320 and a column gap of 500 units, the Y coordinate of the insertion point of the chair on the top right corner of the array will be 3077.87 correct up to two decimal places. The other options are incorrect.
The reason for this is that when a rectangular array is made with 2 rows and 3 columns, the Y coordinate of the insertion point of the chair on the top right corner of the array will be calculated based on the gap of row and column gap specified.
